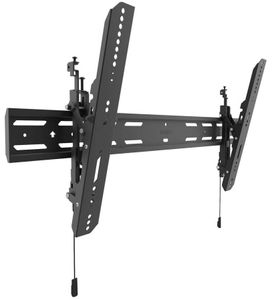

The PT400 is a low-profile, tilting wall mount designed to improve line-of-sight with your TV. Its pre-tensioned mounting brackets provide 12° of forward tilt and come equipped with adjustable screws to facilitate precision leveling.Read More
Torx screws and a locking feature are also included to protect against theft, while quick-release cords provide an easy way of removing your TV when unlocked. Featuring a 35-inch wall plate, the PT400 ensures an easy installation on both 16 and 24-inch stud centers, and comes with all the necessary hardware for wood stud and concrete installations.
Tilt your TV up to 12° forward to reduce glare and improve line-of-sight with your screen.
With a combined thickness of 1.4”, the PT400’s slim wall plate and mounting brackets allow your TV to sit remarkably close to the wall.
Measuring 35″ wide, the solid steel wall plate can be installed across three studs with 16″ spacing, or two studs with 24″ spacing.
Ensure your TV is perfectly level by adjusting the individual screws located on top of each mounting bracket.
Removing your TV from the wall is as easy as pulling on two quick-release cords. Each cord includes a magnetic end, allowing them to be conveniently tucked out of sight.
Two Torx screws can be tightened with the provided key to prevent your TV from being removed. Alternatively, a lock can be attached to the mounting brackets to secure them in place (lock not included).
General Specs | |
| Product Weight (lbs.) | 8.2 |
| Tilt | Yes |
| Mount Type | Tilt |
| TV Size's up to (in.) | 90 |
| Weight Capacity (lbs.) | 150 |
| Manufacturer Warranty | 5 Year |
Features | |
| Profile | Sits 1.4″ (3.5 cm) from the wall |
| Material | Solid steel with durable powder coated finish; Integrated cable management; Adjustable horizontal leveling; Magnetic quick-release cords; Lockable arms (lock not included) |
General | |
| Includes | Installation Manual; All mounting hardware for wood stud and concrete installation |
| Warranty | 5 Years |
Weights And Measurements | |
| TV Sizes | 40” to 90” |
| Weight Allowances | 150 lb (91 kg) |
| VESA Sizes | 100×100 to 800×400 |
| Wall Plate | 34.8” (88.4 cm) wall plate allows mounting to three 16” studs, or offsetting on 24” stud centers |
| Shipping Box Weight | 10.8 lb (4.9 kg) |
| Shipping Box Dimensions | 36.2″ x 6.8″ x 3.3″ (91.9 x 17.3 x 8.4 cm) |
| Product Weight | 8.2 lb (3.7 kg) |
